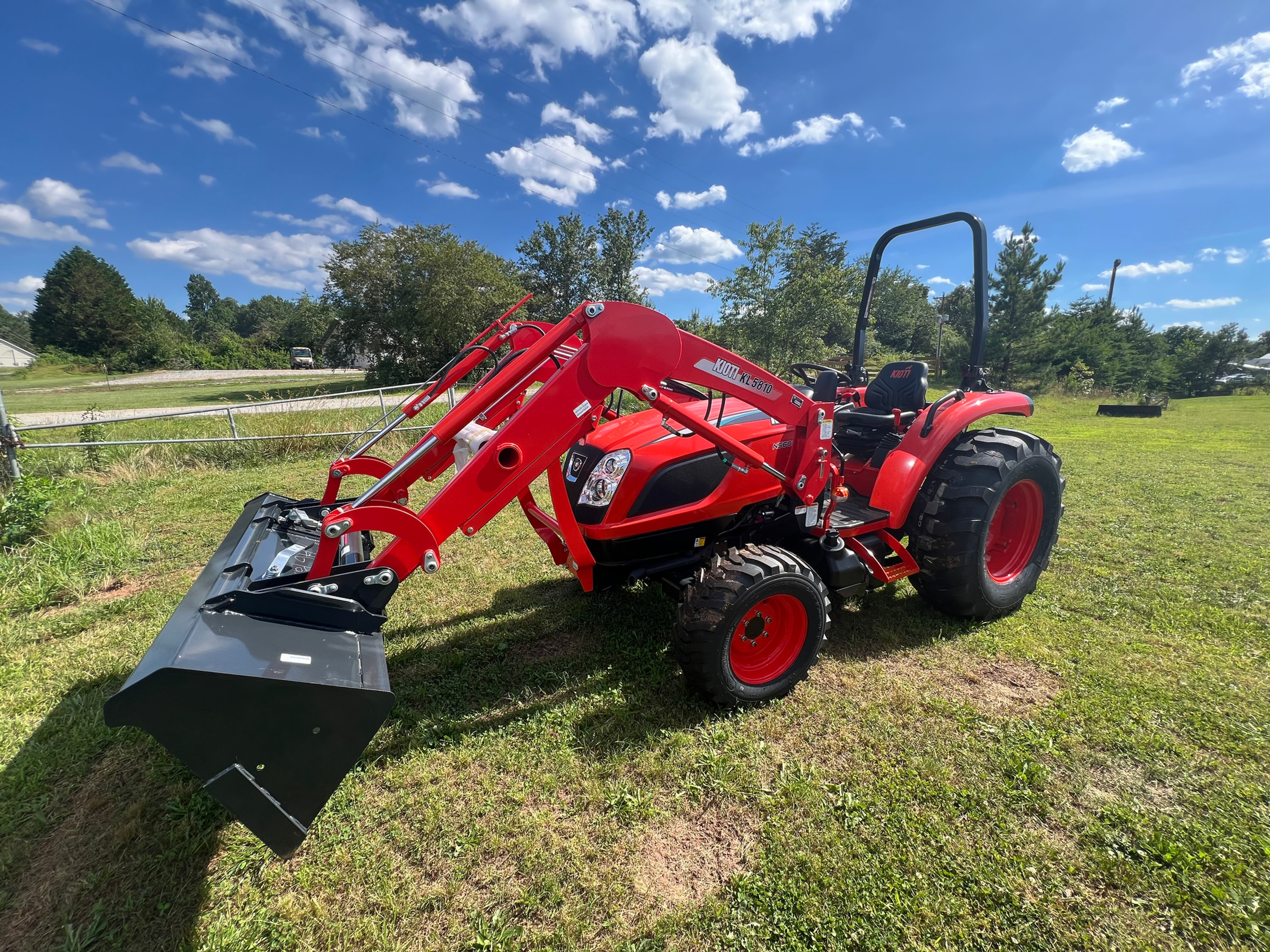

Kioti NS6010MB

Kioti NS6010MB

Eco-Friendly Diesel Engine

The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Silence and strength go hand-in-hand, letting you conquer every task with quiet confidence.

Hydraulic Independent PTO

Effortlessly control your implements with the hydrophilic independent PTO. A single knob engages the standard rear PTO, while a safety interlock protects you by preventing engine startup with the switch on. Choose manual or automatic operation: select Auto PTO and watch the PTO disengage automatically when the 3-point control rises, keeping you safe and your workflow smooth.

Single Lever Joystick

The single lever joystick redefines front-loader operation. With a flick of your wrist, you command every movement, from raising the boom to lowering the bucket. A float position allows the bucket free flotation over the ground surface.

Rear Remote Hydraulic Valve Standard

Adds versatility and control by allowing you to operate hydraulic implements like backhoes, mowers, and hay rakes using a lever from the cab.

  • Engine

    Model

    3HT-S4TM58A

    Power

    57.70 hp (43 kW)

    Displacement

    111.40 cu. in. (1,826 cc)

    RPM

    2,600 rpm

    Choke

    Auto

    Fuel Type

    Diesel

    Aspiration

    Turbo Charged

    Fuel Capacity

    13.20 gal (50 L)

  • Transmission

    Transmission

    Manual: Synchro Shuttle

    Shuttle

    Synchronized

    Travel Speeds Forward

    12

    Travel Speeds Reverse

    12

    Travel Speeds Minimum Speed

    1.50 mph (0.90 km/h)

    Travel Speeds Maximum Speed

    26.80 mph (16.70 km/h)

    Travel Speeds Min Reverse Speed

    1.30 mph (0.80 km/h)

    Travel Speeds Max Reverse Speed

    14.80 mph (23.80 km/h)

  • PTO

    Type

    Independent

    Power

    36.60 hp (27.30 kW)

    Rear Speed

    540

    Mid Speed

    2,000 (optional)

  • Drive Train

    Brakes

    Wet Multi Disc

    Clutch

    Dry Single Plate

  • Hydraulics

    Pump

    Gear

    Pump Capacity

    16.50 gpm (62.40 lpm)

    Lift Capacity

    2,940 lb (1,334 kg)

  • Hitch

    Type

    Three Point

    Category

    Category 2

    Control Type

    Position with Draft Control

    Lift Capacity

    2,716 lb (1,232 kg)

  • Dimensions

    Length with Hitch

    136.40 in (3,465 mm)

    Width

    67.10 in (1,705 mm)

    Height with Cab

    98.40 in (2,500 mm)

    Wheelbase Length

    75.50 in (1,918 mm)

    Ground Clearance

    13.40 in (340 mm)

    Front Tread

    51.10 in (1,297 mm)

    Rear Tread

    54.30 in (1,380 mm)

    Turning Radius

    11.04 ft (3.37 m)

    Weight

    4,027 lb (1,827 kg)

  • Loader

    Models

    KL5810

    Compatibility

    Fits the NS Series.

    Lift Height Max Pivot Pin

    106.30 in (2,700 mm)

    Clearance Level

    100.90 in (2,562 mm)

    Clearance Dumped

    79.50 in (2,020 mm)

    Dump Angle Max

    67 °

    Reach at Ground

    74.40 in (1,890 mm)

    Rollback Angle Max

    32 °

    Digging Depth

    10.20 in (260 mm)

    Height Max in Carry Position

    49.80 in (1,265 mm)

    Bucket Depth

    26.40 in (670 mm)

    Height

    22 in (560 mm)

    Length

    26.40 in (670 mm)

    Lift Capacity to Full Height

    2,621 lb (1,189 kg)

    Breakout Force at Pivot Pin

    3,896 lb (1,767 kg)

    Bucket Size

    72 in (1,828.80 mm)

    Weight

    1,188 lb (538 kg)

    Relief Valve Setting

    2,683 psi (184.98 bar)

    Rated Flow

    9.60 gpm (36.30 lpm)

    Bucket Capcity Heaped

    14.80 ft³ (3.20 m³)

$39,500.00 Regular Price
$36,200.00Sale Price
