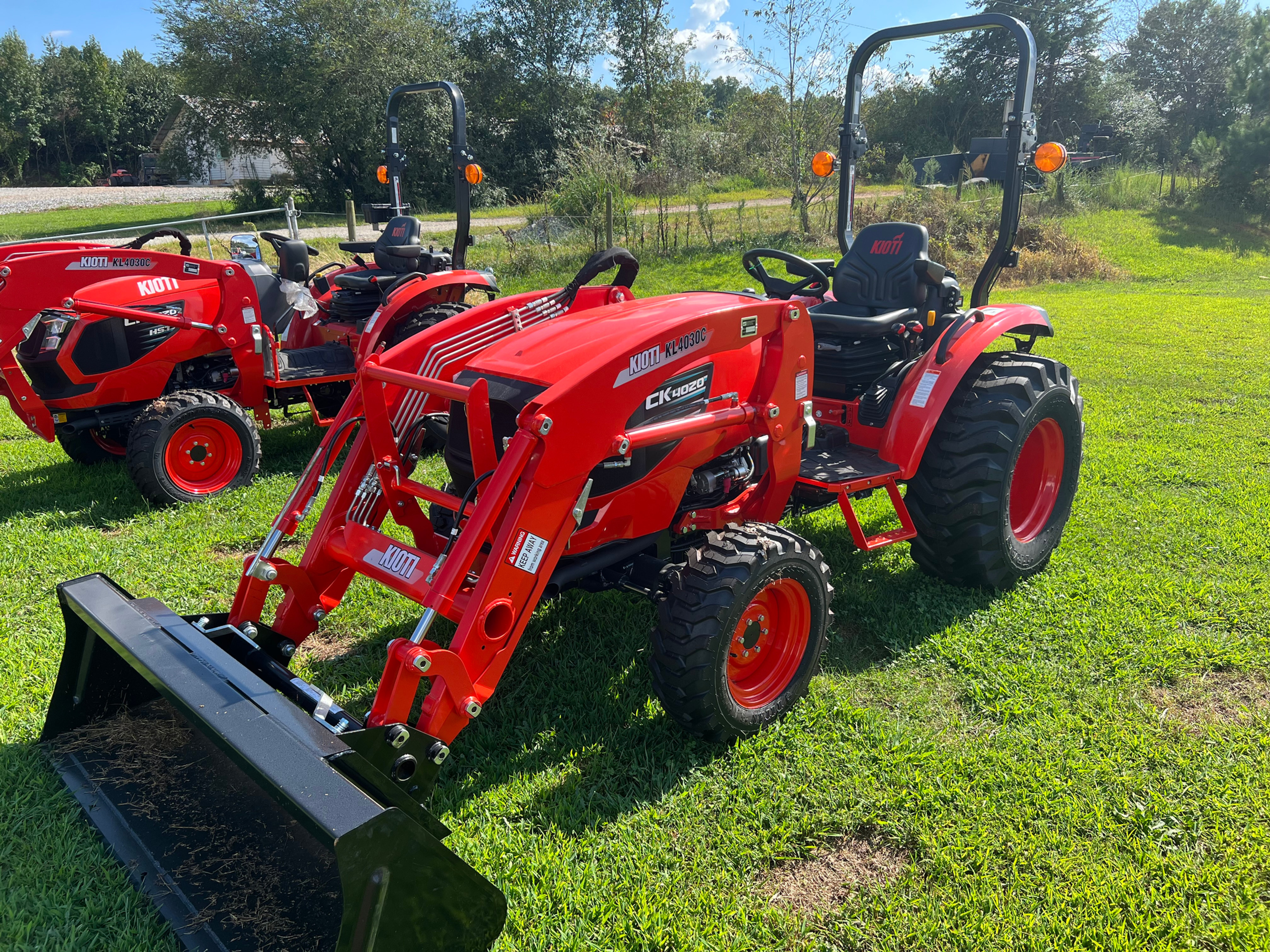

Kioti CK4020MB

High Capacity Hydraulic Pump

The high capacity, efficient tandem hydraulic pump gives you smoother handling in heavy-duty working conditions and helps to reduce operator fatigue.

Power Steering

Responsive, powerful and comfortable steering reduces operator fatigue. The power steering system is robustly designed for maneuvering in soft soil and for front loader operation.

Deluxe Seat

A fully adjustable suspension seat allows the operator to ride in comfort no matter what the job. A retractable seatbelt is standard on all KIOTI tractors to ensure operator safety.

Rear PTO

Rear PTO is standard and mid PTO is optional. You can select the rear or mid PTO separately or simultaneously.

Single Lever Joystick

The operation of the front end loader is made easier by the use of a single lever joystick. The joystick allows you to perform all loader functions with a single lever. The lever automatically returns to neutral and the loader stops in place when the joystick is released. A float position allows the bucket free flotation over the ground surface.

Foldable ROPS

A fold-down roll bar allows you to move into tight areas quickly and easily.

Simple Maintenance

KIOTI tractors are designed for easy maintenance. Liftable hoods and removable side panels allow convenient access for daily service checks. Maintaining your tractor for long life and high performance has never been easier.

Center Marker

The center marker on the hood assists with maintaining straight rows.

High Ground Clearance

The maximum ground clearance of 13.4 in. makes usage on rocky or uneven terrain simpler.

Illuminated Dashboard

The illuminated dashboard ensures great visibility while working in bright daylight or at night. The operator can check important instrumentation at a glance with an easy-to-see tachometer, hour meter, fuel temperature gauge and battery charge lamp.

3-Point Control Lever

The 3-point control lever allows you to easily raise and lower the lift arms when attaching implements.

9x3 Manual Transmission

Manual transmission models feature 9F/3R speeds with synchronized 2nd and reverse gears making repetitive back and forward operation more efficient.

Transmission

Transmission Type	9x3 Manual Transmission
Main Gear	Manual
No. of Travel Speeds - Forward / Reverse	9F/3R
Min. Travel Speed of Forward w/ Ag @ Engine rated speed	.94 mph (1.52 km/h)
Max. Travel Speed of Forward w/ Ag @ Engine rated speed	14.64 mph (23.56 km/h)

Power Take-Off (PTO)

PTO Type Trans	Live
PTO Power	34.8 hp (25.9 kW)
Rear PTO Speeds (1st)	540 rpm
Mid PTO Speeds	2,000 rpm (Optional)

Brakes and Clutch

Brakes	Wet Multi Disc
Clutch	Dry Dual Stage

Dimensions w/ AG Tire

Length w/ 3-point hitch	120.87 in. (3,070 mm)
Width	54.53 in. (1,385 mm)
Height from Top of ROPS	92.91 in. (2,520 mm)
Wheelbase	65.7 in. (1,670 mm)
Ground Clearance	13.39 in. (340 mm)
Front Tread Ag Tires - Min	48.22 in (1,225 mm)
Rear Tread Ag Tires - Min	47.6 in. (1,210 mm)
Min. Turning Radius w/ Brake	107.48 in. (2,730 mm)

Hydraulics

Total Pump Flow

11.7 gpm (44.4 L/min)

3-Point Hitch

Standard Category	Category 1
Lift Capacity, 24" aft of hitch	1,631 lbs. (740 kg)
Control Type	Position

Weight

Weight w/ Ag Tires w/ ROPS

2,679 lbs. (1,215 kg)

Equipment & Panel

Standard Equipment	Optional Equipment	Instrument Panel
Rear PTO Wet Multi Disc Brakes Joystick Valve Drawbar Headlights Parking Brake PTO Shield	Front Weights Mid PTO HST Linked Pedal (HST only) Clevis Type Drawbar Side View Mirror (1 ea) Dual Remote Hydraulic Valve (Non-Detent) Dual Remote Hydraulic Valve (Spring/Detent/Dual Detent) Fuel Heater Kit (N/A on CK2620) Rear Wheel Weight (Ag Tire Only) 3rd Function Kit for Front End Loader	Digital Hour Meter Coolant Temperature Gauge Electrical Tachometer Fuel Gauge Engine Oil Pressure Light High Beam, Emergency Flasher, Direction Indicators Glow Plug Light Alternator Light
