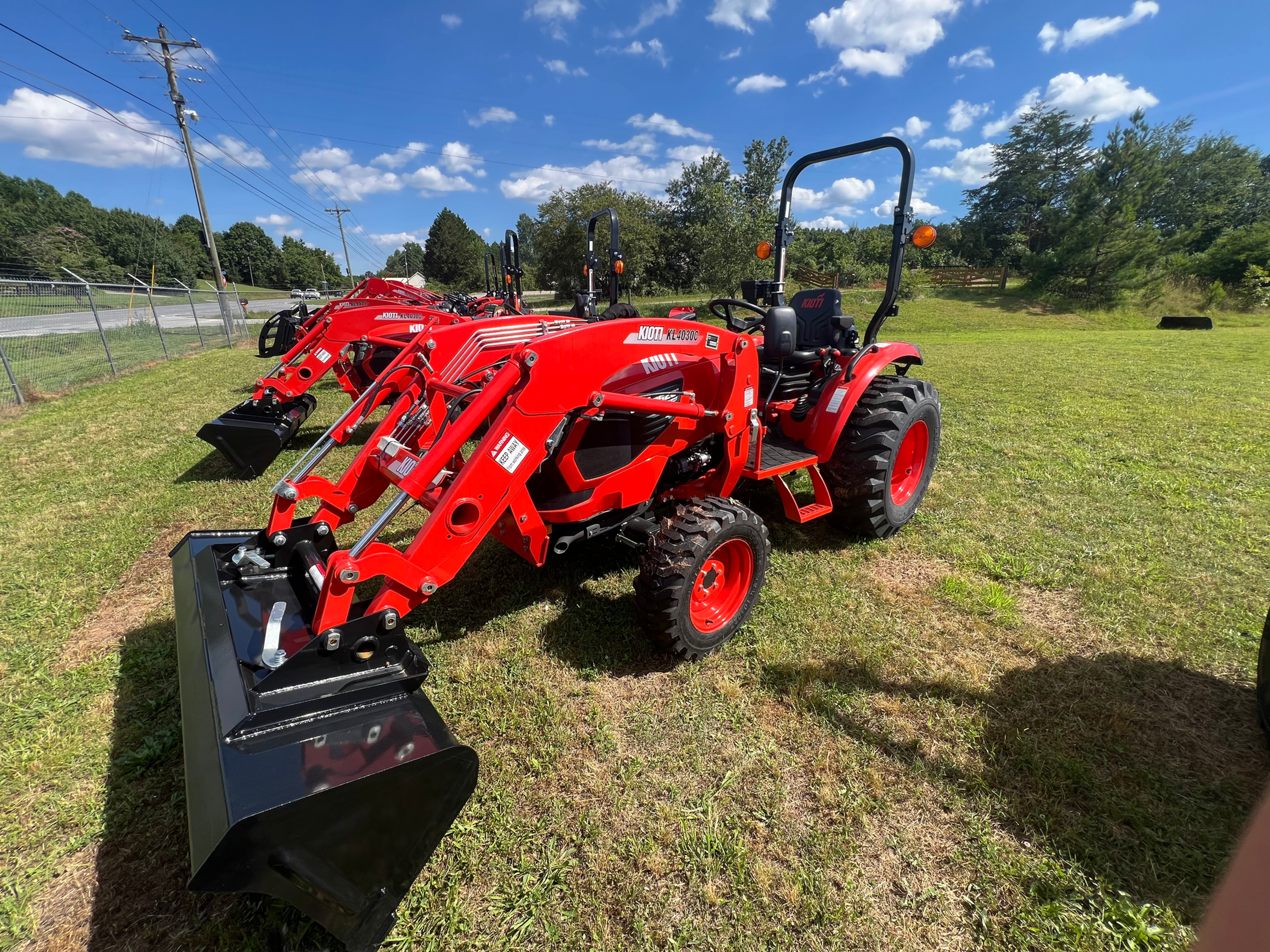

Kioti CK3520SEMB
Eco-Friendly Diesel Engine
The whisper-quiet, eco-friendly KIOTI Tier 4 CRDI engine improves fuel efficiency while reducing noise levels. Letting you conquer every task with quiet confidence.
Single Lever Joystick
The single lever joystick redefines front-loader operation. With a flick of your wrist, you command every movement, from raising the boom to lowering the bucket. A float position allows the bucket free flotation over the ground surface.
3-Point Control Lever
Allows you to raise and lower your implements with the slide of a lever with minimal effort yet maximum precision. A rear-mounted lever eliminates the need for climbing and contorting, to attach or detach an implement. (cab models only)
High Ground Clearance
The impressive 13.4" ground clearance lets you glide over rocks and uneven ground to conquer any terrain with confidence.
Engine
Model
3H-TM4B
Power
34.90 hp (26 kW)
Displacement
111.40 cu. in. (1,826 cc)
RPM
2,600 rpm
Choke
Auto
Fuel Type
Diesel
Aspiration
Intercular
Fuel Capacity
9 gal (34 L)
Transmission
Transmission
Hydrostatic
Travel Speeds Forward
3
Travel Speeds Reverse
3
Travel Speeds Minimum Speed
0 mph (0 km/h)
Travel Speeds Maximum Speed
14.88 mph (23.94 km/h)
Travel Speeds Min Reverse Speed
0 mph (0 km/h)
Travel Speeds Max Reverse Speed
16.76 mph (10.41 km/h)
PTO
Type
Independent
Power
30.90 hp (23 kW)
Rear Speed
540
Mid Speed
2,000 (Optional)
Brakes
Brakes
Wet Disc Type
Hydraulics
Pump
Gear
Pump Capacity
11.30 gpm (42.90 lpm)
Lift Capacity
1,631 lb (740 kg)
Hitch
Type
Three Point
Category
Category 1
Control Type
Position
Lift Capacity
1,500 lb (680 kg)
Dimensions
Length
120.90 in (3,070 mm)
Width
54.50 in (1,385 mm)
Height
92.90 in (2,360 mm)
Wheelbase
65.70 in (1,670 mm)
Ground Clearance
13.40 in (340 mm)
Front Tread
48.20 in (1,225 mm)
Rear Tread
47.60 in (1,210 mm)
Turning Radius
8.96 ft (2.73 m)
Weight
2,921 lb (1,325 kg)
Loader
Models
KL4030
Compatibility
Fits the CK20, CK20SE series.
Lift Height Max Pivot Pin
98.40 in (2,500 mm)
Clearance Level
93 in (2,360 mm)
Clearance Dumped
79.10 in (2,010 mm)
Reach at Max Height
27.20 in (690 mm)
Dump Angle Max
48 °
Reach at Ground
62.20 in (1,580 mm)
Rollback Angle Max
28 °
Digging Depth
5.30 in (135 mm)
Height Max in Carry Position
49.60 in (1,260 mm)
Bucket Depth
19.90 in (505 mm)
Lift Capacity to Full Height
1,835 lb (832 kg)
Breakout Force at Pivot Pin
3,464 lb (1,571 kg)
Bucket Rollback Force at Ground
1,763.70 lb (800 kg)
Relief Valve Setting
2,560 psi (176.50 bar)
Rated Flow
6.90 gpm (26.12 lpm)
Bucket Capcity Heaped
9.39 ft³ (0.22 m³)
Weight
959 lb (435 kg)
Bucket Size
60 in (1,524 mm)
